Ensuring the stability of steel framed workshop buildings is a critical aspect of structural engineering and construction management. Steel framed workshop buildings are prevalent in various industries due to their strength, durability, and flexibility in design. However, to ensure these buildings remain stable and safe throughout their lifecycle, several key elements must be considered. This passage will delve into the various strategies and best practices to ensure the stability of steel framed workshop buildings.
Understanding Steel Framed Workshop Buildings

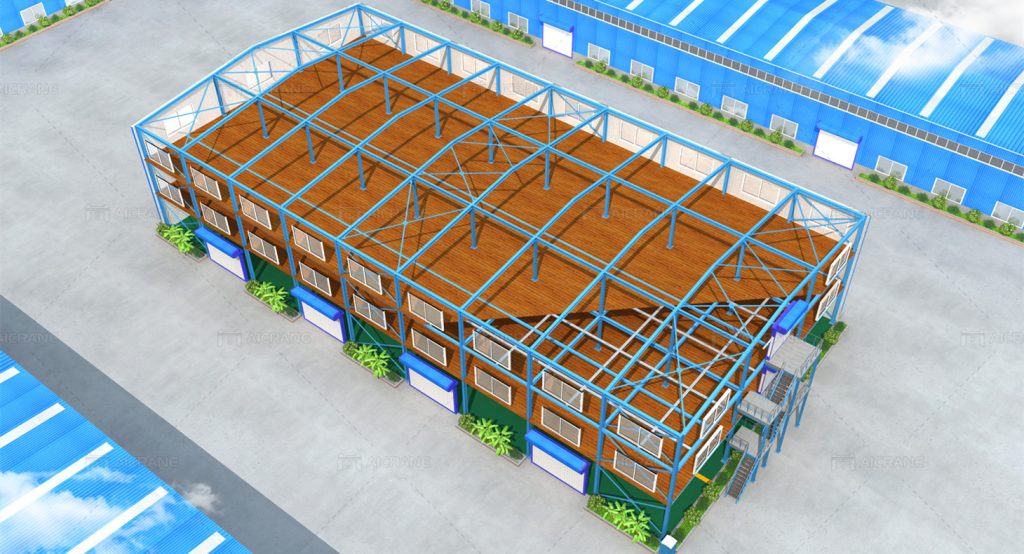

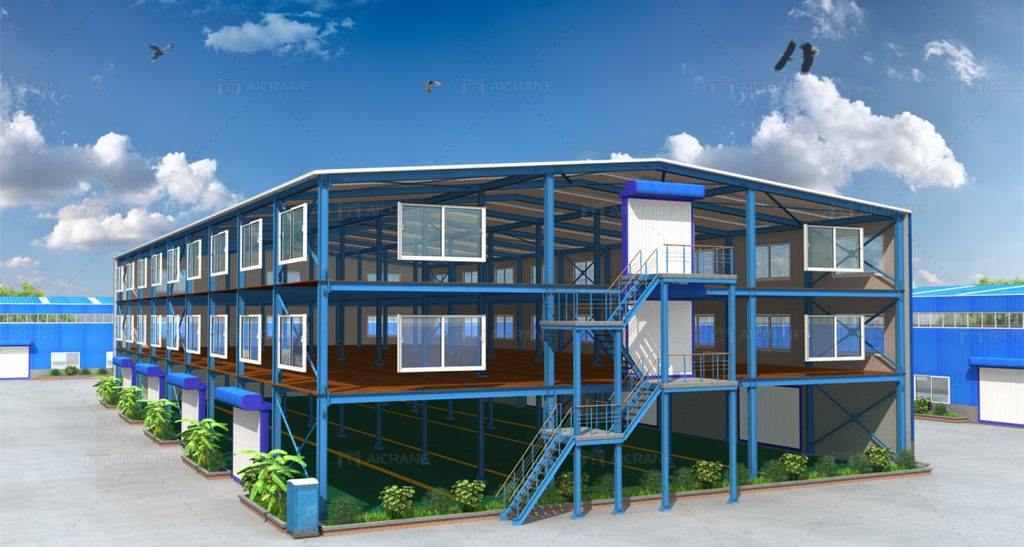

Steel framed workshop buildings are constructed using a skeletal framework of steel columns and beams. This framework supports the building’s floors, roof, and walls, providing a robust structure capable of withstanding various loads and stresses. The primary components of these buildings include:
Columns: Vertical steel members that transfer loads from the roof and floors to the foundation.
Beams: Horizontal steel members that support floors and roofs, transferring loads to the columns.
Bracing: Diagonal steel members that provide additional stability and resistance to lateral forces such as wind and seismic activity.
Connections: Joints where columns and beams are connected, often using bolts or welds.
Foundation: The base of the building that anchors the entire structure to the ground.
Design Considerations
Load Analysis
One of the first steps in ensuring the stability of steel structure framed workshop buildings is conducting a thorough load analysis. This involves calculating the various loads the building will experience, including:
Dead Loads: The weight of the structural components themselves.
Live Loads: Temporary loads such as equipment, machinery, and personnel.
Environmental Loads: Wind, snow, and seismic forces.
Accurate load analysis ensures that the building’s design can accommodate these forces without compromising stability.
Material Selection
Choosing the right grade of steel is crucial for the stability of the structure. The steel must have adequate strength, ductility, and resistance to environmental factors such as corrosion. Commonly used steel grades for workshop buildings include ASTM A36, A572, and A992, each offering different properties suitable for various applications.
Structural Design
The structural design must account for load distribution and the interaction between different components. Key considerations include:
Moment Frames: Designed to resist bending moments and shear forces, providing lateral stability.
Braced Frames: Use diagonal bracing to transfer lateral loads to the foundation, enhancing stability.
Shear Walls: Vertical elements that provide additional resistance to lateral forces, commonly used in conjunction with braced frames.
Foundation Design
The foundation of a steel framed workshop building must be designed to support the loads transmitted from the structure above. Factors influencing foundation design include soil conditions, load-bearing capacity, and environmental factors. Common foundation types include spread footings, mat foundations, and pile foundations.
Construction Best Practices
Quality Control
Ensuring the quality of materials and workmanship by the manufacturer like Aicrane is paramount. Regular inspections and testing of steel components, welding, and bolting help maintain high standards and prevent structural weaknesses. Non-destructive testing (NDT) methods such as ultrasonic testing and radiographic testing can identify defects in welds and materials.
Precision in Erection
Accurate erection of the steel framework is crucial for stability. This involves:
Alignment: Ensuring columns and beams are perfectly aligned and plumb.
Connection Integrity: Proper tightening of bolts and thorough inspection of welds to ensure strong connections.
Temporary Bracing: Using temporary bracing during construction to maintain stability until the permanent bracing is in place.
Weather Considerations
Steel framed workshop buildings are susceptible to weather conditions during construction. Protecting steel components from moisture and corrosion is essential. This can be achieved by:
Applying Protective Coatings: Using anti-corrosive coatings on steel components.
Storing Materials Properly: Keeping steel components off the ground and covered to prevent rusting.
Post-Construction Measures
Regular Inspections
Routine inspections are vital to identify and rectify any potential issues that may compromise stability. Inspections should focus on:
Structural Components: Checking for signs of corrosion, deformation, or fatigue.
Connections: Ensuring bolts remain tight and welds are intact.
Bracing: Verifying the integrity of bracing elements and their connections.
Maintenance
Regular maintenance helps prolong the life of long span steel structure framed workshop buildings. Key maintenance tasks include:
Cleaning: Removing dirt and debris that can trap moisture and cause corrosion.
Repainting: Reapplying protective coatings to prevent rust.
Repairing Damages: Promptly addressing any signs of wear, corrosion, or damage to structural components.
Load Management
Monitoring and managing the loads within the building is crucial for long-term stability. This involves:
Avoiding Overloading: Ensuring that live loads do not exceed the design capacity.
Reconfiguring Layouts: Making adjustments to the layout of equipment and storage to distribute loads evenly.
Advanced Stability Enhancements
Seismic Design
In regions prone to seismic activity, additional measures are necessary to ensure stability. This includes:
Flexible Connections: Using connections that allow movement without compromising structural integrity.
Base Isolation Systems: Installing systems that absorb seismic energy and reduce the forces transmitted to the structure.
Wind Load Mitigation
For areas with high wind speeds, designing for wind load resistance is crucial. This can involve:
Aerodynamic Shapes: Designing the building with shapes that reduce wind pressure.
Wind Bracing Systems: Incorporating additional bracing to resist wind-induced forces.
Ensuring the stability of steel framed workshop buildings involves a comprehensive approach that spans design, construction, and post-construction phases. By conducting thorough load analysis, selecting appropriate materials, implementing meticulous construction practices, and adhering to regular maintenance and inspection routines, the stability and safety of these structures can be assured. Advanced techniques such as seismic design and wind load mitigation further enhance the resilience of steel framed workshop buildings, making them reliable and durable options for various industrial applications.
