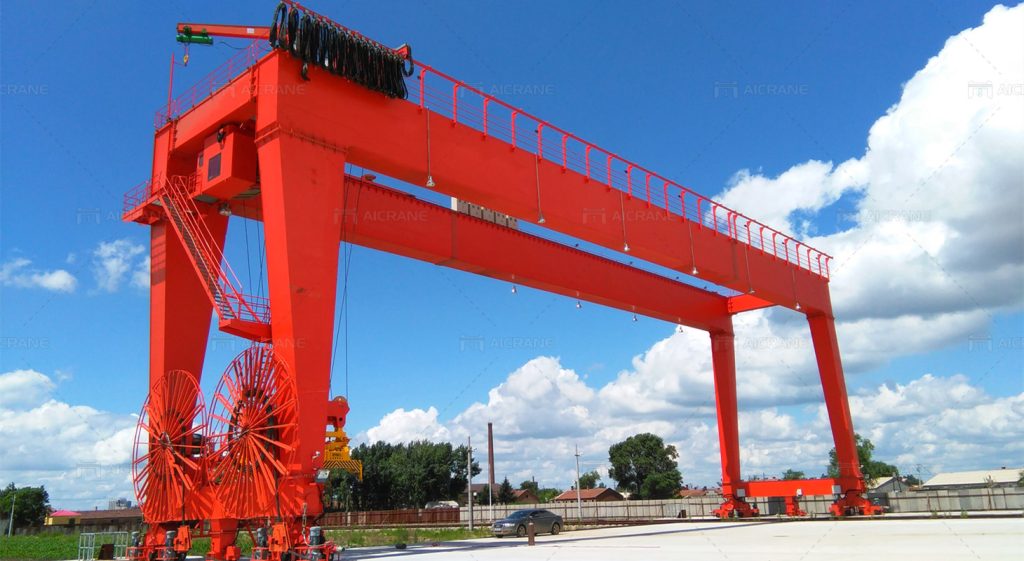

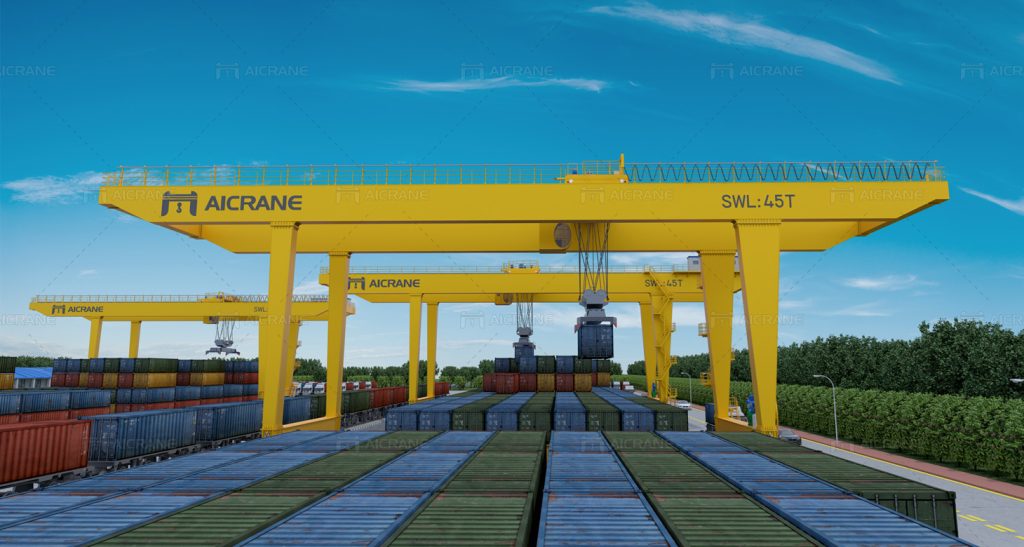

Rail mounted cranes are essential pieces of equipment used in a variety of industries, including shipping, construction, and manufacturing. These cranes operate on fixed rails, allowing them to move heavy loads horizontally across large distances. However, like all machinery, rail mounted cranes can experience wear and tear over time, necessitating regular maintenance and occasional repairs. This guide will provide a comprehensive overview of how to fix a rail mounted crane, ensuring it continues to operate efficiently and safely.
Understanding the Basics of a Rail Mounted Crane
Before diving into the repair process, it’s important to understand the basic components of a rail mounted crane. These typically include:
The Crane Bridge: The horizontal beam that spans the width of the crane’s working area.
End Trucks: Located at either end of the bridge, these components house the wheels that run along the rails.
Hoist and Trolley: The hoist is responsible for lifting the load, while the trolley moves the hoist along the length of the bridge.
Rails: Fixed tracks that guide the movement of the crane.
Electrical Systems: Includes the controls, wiring, and power supply necessary for crane operation.
Common Issues with Rail Mounted Cranes
Several issues can arise with rail mounted cranes, including:
Wear and Tear on Rails: Over time, the rails can become worn or damaged, leading to misalignment and instability.
Electrical Failures: Problems with the electrical systems can cause the crane to malfunction.
Mechanical Failures: Components like the hoist, trolley, and end trucks can experience mechanical issues.
Structural Damage: Cracks or deformities in the crane’s structure can compromise its integrity.
Step-by-Step Guide to Fixing a Rail Mounted Crane
Initial Inspection and Diagnosis
The first step in fixing a rail mounted crane is a thorough inspection to diagnose the issue. This involves:
Visual Inspection: Check for obvious signs of wear, damage, or misalignment. Look for cracks, worn-out parts, and any irregularities in the rails.
Operational Test: Operate the crane to identify any functional issues. Pay attention to unusual noises, jerky movements, or electrical malfunctions.
Component Testing: Use diagnostic tools to test electrical components, motors, and mechanical parts for faults.
Addressing Rail Issues
If the rails are worn or damaged, they must be repaired or replaced. This process includes:
Cleaning and Lubrication: Clean the rails thoroughly to remove dirt, debris, and rust. Apply lubrication to ensure smooth movement.
Rail Alignment: Check the alignment of the rails using a straightedge or laser alignment tool. Misaligned rails should be adjusted to prevent further wear.
Replacing Damaged Sections: If sections of the rails are severely damaged, they need to be cut out and replaced. Ensure the new sections are securely fastened and aligned with the existing rails.
Fixing Electrical Issues
Electrical problems can be complex, requiring careful troubleshooting and repair:
Check Wiring and Connections: Inspect all wiring and connections for signs of wear, corrosion, or disconnection. Repair or replace any damaged wiring.
Test Electrical Components: Use a multimeter to test the functionality of switches, relays, and other electrical components. Replace any faulty parts.
Control System Inspection: Ensure the control system is functioning correctly. Update software or replace control units if necessary.
Repairing Mechanical Components
Mechanical issues often involve the hoist, trolley, and end trucks:
Hoist Repair: Inspect the hoist for wear on the gears, brakes, and motor. Replace worn parts and lubricate moving components.
Trolley Maintenance: Ensure the trolley moves smoothly along the bridge. Check for worn wheels or bearings and replace as needed.
End Truck Inspection: Examine the end trucks for wheel alignment and bearing wear. Adjust or replace components to ensure smooth operation.
Structural Repairs
Structural integrity is crucial for the safe operation of a rail mounted crane:
Inspect for Cracks and Deformities: Use visual and non-destructive testing methods to identify structural issues.
Welding and Reinforcement: Repair cracks with welding and reinforce weak areas with additional material.
Load Testing: After structural repairs, perform load testing to ensure the gantry crane can safely handle its rated capacity.
Preventative Maintenance
To prevent future issues, establish a regular maintenance schedule:
Routine Inspections: Conduct regular inspections of all crane components to identify and address wear and tear early.
Lubrication and Cleaning: Keep the crane clean and well-lubricated to ensure smooth operation.
Training and Safety: Train operators on proper use and maintenance of the crane, emphasizing safety protocols.
Fixing a rail mounted crane involves a comprehensive approach that addresses both mechanical and electrical issues. By conducting thorough inspections, performing necessary repairs, and implementing a preventative maintenance plan, you can ensure your rail mounted crane operates efficiently and safely for years to come. Regular attention to the condition of the rails, electrical systems, mechanical components, and structural integrity will minimize downtime and extend the lifespan of this essential piece of equipment. Contact your gantry crane manufacturer to get more information about your gantry.
