In material handling operations, one of the most crucial factors to consider when selecting a gantry crane is its lifting capacity. The crane’s capacity determines the maximum load it can safely lift and move, directly impacting both productivity and safety. Understanding how gantry crane capacity is defined, calculated, and applied helps businesses choose the right equipment for their specific lifting requirements — whether it’s a 5 ton gantry crane for workshops or a 100 ton gantry crane for large-scale construction projects.
1. What Does Gantry Crane Capacity Mean?
Gantry crane capacity refers to the maximum rated load that the crane can lift safely under specified conditions. This includes the combined weight of the load, the hook block, the lifting tackle, and any other attachments. The rated capacity is determined through structural design analysis and extensive testing according to international standards such as ISO, FEM, and CMAA.

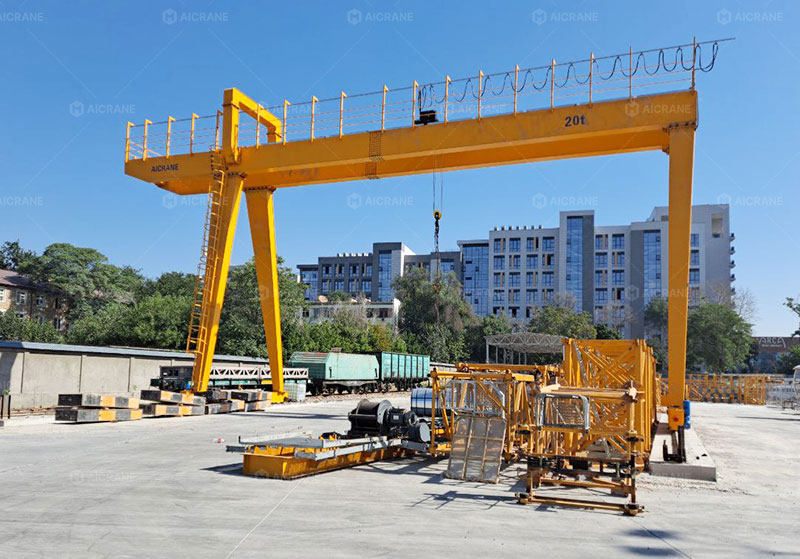

For example, a 20 ton gantry crane is designed to lift loads up to 20 tons (20,000 kilograms) within its rated working range. Attempting to exceed this limit not only risks damaging the crane but also endangers operators and nearby workers. The capacity label — typically displayed on the crane’s beam or control panel — serves as a constant reminder of this safe working limit.
2. Factors That Determine Gantry Crane Capacity
Several engineering and operational factors influence a gantry crane’s rated load capacity. Understanding these can help you make a more informed purchasing decision.
a. Structural Design
The crane’s overall design – including its main beam type (single or double girder), leg structure, and cross-frame rigidity – plays a major role in defining its lifting capacity.
-
Single girder gantry cranes are generally suitable for light to moderate loads, such as 5 ton or 10 ton gantry cranes used in small workshops or warehouses.
-
Double girder gantry cranes, with stronger and more rigid structures, are better for heavy-duty lifting — typically in the range of 20 ton, 50 ton, or even 200 ton gantry cranes used in industrial and outdoor environments.
b. Material Strength
High-tensile steel and reinforced welding joints improve the structural integrity of gantry cranes, allowing them to handle heavier loads without deformation. The use of advanced materials, such as Q345B or equivalent, ensures the crane remains stable under stress.
c. Span and Lifting Height
A longer span or higher lifting height may reduce the overall load capacity if not properly designed. The structural stress on the main girder increases with distance, so engineers calculate capacity limits based on these dimensions to prevent bending or deflection.
d. Hoisting Mechanism
The capacity of the hoist and trolley mechanism must match the crane’s rated load. For instance, a 20 ton gantry crane would typically use a 20-ton electric wire rope hoist or a trolley system with dual lifting motors for smooth and safe lifting.
e. Wheel Load and Ground Support
Each wheel of the gantry crane bears a portion of the total load. The supporting rail or ground surface must be capable of handling the distributed wheel loads. Failure to account for ground conditions can cause instability or even structural collapse.
3. Understanding the Relationship Between Capacity and Safety
Safety is at the heart of every gantry crane design. Exceeding the rated load is one of the most common causes of crane-related accidents. Modern cranes are therefore equipped with overload protection devices that automatically stop lifting operations when the system detects excessive weight.
Additionally, a crane’s working duty classification (e.g., A3, A5, A6, or A7) indicates how frequently it can operate at or near its rated capacity. A crane with a higher duty rating can handle heavier workloads more often without compromising safety or lifespan. For example, a 50 ton gantry crane designed for A6 duty may be used intensively in a steel yard, while an A3-rated version may only be suitable for occasional lifting.
4. Load Distribution and Center of Gravity
Even if a crane’s rated capacity is not exceeded, improper load distribution can create dangerous conditions. The load’s center of gravity must align with the crane’s lifting hook to avoid tipping or lateral strain. When handling large or irregular loads, operators must use spreader beams or slings to maintain stability.
For instance, when lifting long concrete beams with a 100 ton gantry crane, the load should be balanced using multiple lifting points to prevent torsional stress on the crane structure.
5. Capacity Testing and Certification
Before a gantry crane is delivered to a customer, manufacturers perform load testing to confirm that it meets the specified capacity standards. This typically includes:
-
Static load tests, where the crane lifts 125% of its rated load to verify structural strength.
-
Dynamic load tests, where the crane moves a 110% load to evaluate operational stability and control accuracy.
These tests ensure that a 20 ton gantry crane or any other model is safe and reliable under real-world working conditions. Certification from recognized authorities provides additional assurance of quality and compliance.
6. Choosing the Right Capacity for Your Application
Selecting the appropriate gantry crane capacity depends on the type of materials you handle, the frequency of lifting, and the working environment. Here are a few examples:
-
5 ton gantry crane: Ideal for small fabrication shops, maintenance work, or light assembly tasks.
-
10–20 ton gantry crane: Commonly used in warehouses, workshops, and manufacturing plants for handling machinery, molds, and steel components.
-
30–50 ton gantry crane: Suitable for heavy-duty operations such as precast concrete handling, shipyard maintenance, and container loading.
-
100 ton and above: Used in power plants, bridge construction, shipbuilding, and heavy engineering industries where massive components need precise handling.
When in doubt, it is better to select a crane with slightly higher capacity than your maximum expected load. This ensures operational safety and allows flexibility for future lifting requirements.
7. Customization Options for Specific Capacity Needs
Modern gantry crane manufacturers, such as Aicrane, offer custom design services to tailor crane capacity and configuration to your exact needs. For instance:
-
A 20 ton mobile gantry crane with rubber tyres for flexible movement across a worksite.
-

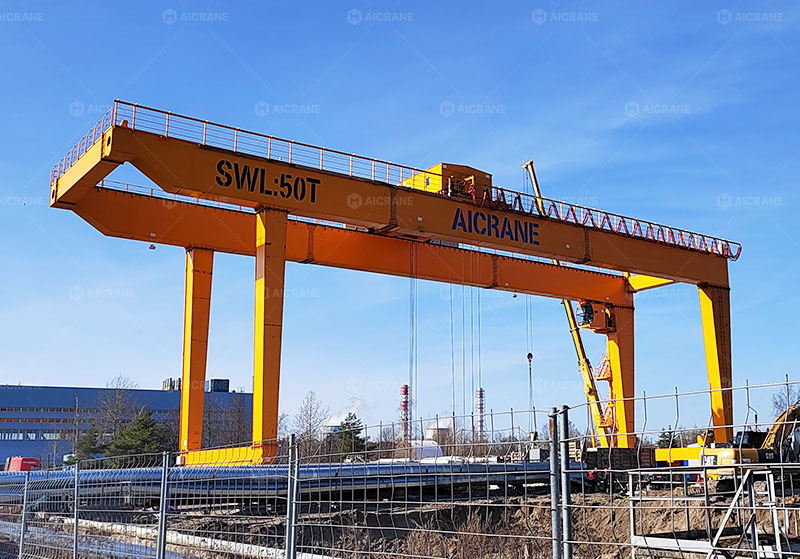

A 50 ton double girder gantry crane with cantilever arms for loading and unloading along railway tracks.
-
A 100 ton rail mounted gantry crane for container handling in port terminals.
By customizing the hoist type, control system, lifting height, and span, you can achieve optimal performance for your operation while maintaining safety and efficiency.
8. Maintaining Capacity Performance Over Time
To preserve the rated capacity throughout a crane’s service life, regular inspection and maintenance are essential. This includes checking for structural deformation, wear in hoist components, lubrication of moving parts, and calibration of safety devices. Scheduled maintenance ensures that your 20 ton gantry crane or 100 ton gantry crane continues to operate at peak efficiency with minimal downtime.
Conclusion
Understanding gantry crane capacity is fundamental to safe, efficient, and cost-effective lifting operations. From design and testing to selection and maintenance, every factor influences how much weight a crane can reliably handle. Whether you require a 10 ton gantry crane for a workshop or a 100 ton gantry crane for large industrial projects, knowing how capacity works helps you choose the right solution — one that delivers performance, durability, and safety for years to come.
